Entity Relationship Model (ER-Model)

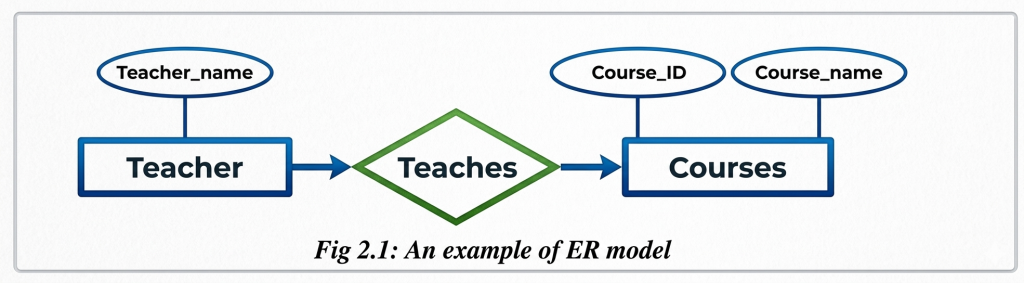

2.1 Introduction of ER-Model
The Entity-Relational (ER) Model is a method used to design a database. It helps us identify the main objects (called entities) that need to be stored in a database and shows how these objects are connected to each other. The ER data model describes the overall structure of a database in a clear and graphical form. This structure is called the enterprise schema, which shows how all data is organized logically.
An Entity Relationship (ER) Diagram is used to explain the relationships between different entities in a database. It represents real-world objects such as a person, a car, or a company, and shows how they are related.In short, an ER diagram is a visual or structural representation of how a database is organized.
Use of ER Diagram or Applications of ER Diagram
- Database Design: ER diagrams help in planning and designing databases by clearly showing the relationships between different data entities.
- Documentation: They work as a reference or guide that gives an overview of the system structure. This helps new team members or users understand the database easily.
- Finding Problems Early: ER diagrams help identify and solve possible problems in the database design before development begins, which saves time later.
- Maintenance and Upgrading: During system updates or maintenance, ER diagrams help understand how changes will affect different parts of the database.
- Easy to Understand: ER diagrams are simple to create and easy to understand, even for beginners or new users.
- Data Analysis: They help in building an effective database structure, which makes data analysis easier and more useful.

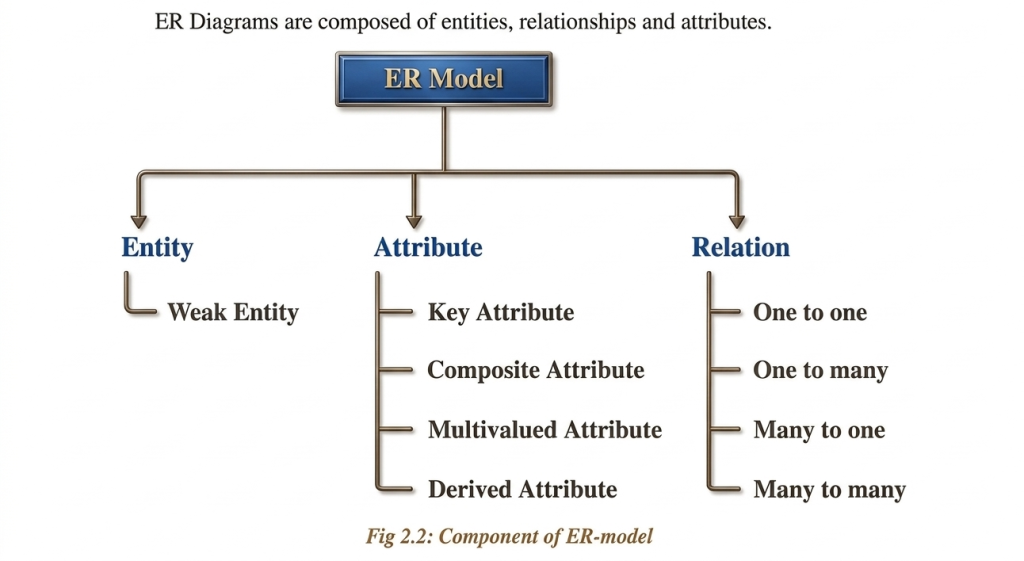

2.2 Component of ER model:

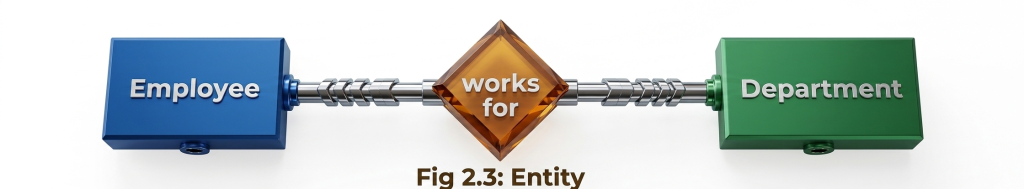

Entity
An entity is anything that we want to store information about in a database. It can be an object, a class, a person, or a place. In an ER diagram, an entity is shown as a rectangle.

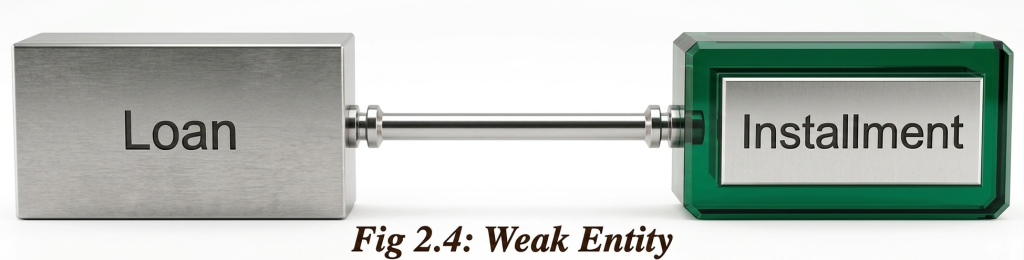

Weak Entity
A weak entity is an entity that depends on another entity and does not have its own key attribute; it is shown by a double rectangle in an ER diagram.
An entity set is a collection of similar entities, such as students, motorbikes, smartphones, or customers. It is of two types:
1. Strong Entity Set
A strong entity set is a group of entities that has its own primary key, so each entity can be uniquely identified. For example, motorbikes can be identified by their registration number.
2. Weak Entity Set
A weak entity set is a group of entities that does not have a primary key of its own, so it cannot be uniquely identified by itself and depends on another entity. For example, smartphones identified only by name, colour, and RAM

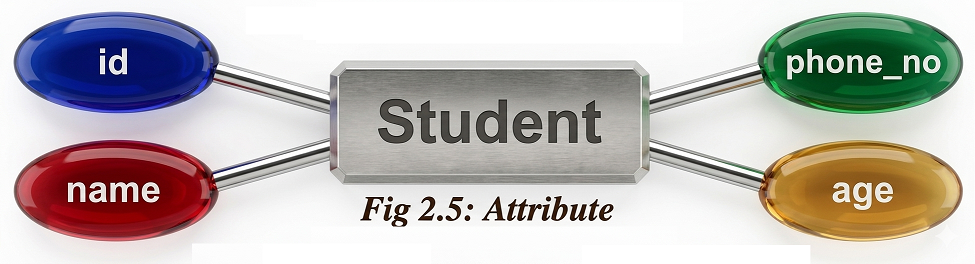

Attributes, Types of Attributes
An attribute is used to describe the properties of an entity. It is represented by an ellipse (oval) in an ER diagram. For example, ID, age, contact number, and name are attributes of a student.
Types of Attributes
i. Key Attribute
A key attribute is used to represent the main characteristic of an entity and acts as a primary key. It is shown by an ellipse (oval) with the attribute name underlined in an ER diagram.

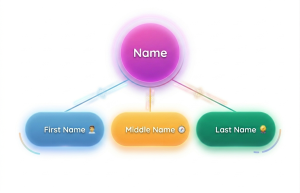

ii Composite Attribute
A composite attribute is an attribute that is made up of two or more smaller attributes. For example, a full name can be divided into first name, middle name, and last name.
Example 1: Creating Employee table with Composite ContactInfo Attribute.
CREATE TABLE Employee (
EmployeeID INT PRIMARY KEY,
Name VARCHAR(50),
-- Composite Attribute Contactnfo
ContactInfo VARCHAR(100)
);
INSERT INTO Employee (EmployeeID, Name, ContactInfo)
VALUES
(1, 'John Doe', 'john@example.com, 123-456-7890'),
(2, 'Jane Smith', 'jane@example.com, 456-789-0123'),
(3, 'Alice Johnson', 'alice@example.com, 789-012-3456');Employee Table
EMPLOYEEID | NAME | CONTACTINFO |
|---|---|---|
| 1 | John Doe | john@example.com, 123-456-7890 |
| 2 | Jane Smith | jane@example.com, 456-789-0123 |
| 3 | Alice Johnson | alice@example.com, 789-012-3456 |
Student Table
STUDENTID | NAME | ADDRESS |
|---|---|---|
| 1 | John Doe | 123 Main Street, Apt 2, 10001 |
| 2 | Jane Smith | 456 Elm Street, Suite 3B, 20002 |
| 3 | Alice Johnson | 789 Oak Avenue, 30003 |

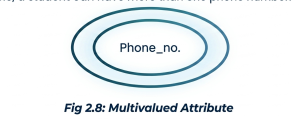

iii Multivalued Attribute
A multivalued attribute is an attribute that can have more than one value for a single entity. It is represented by a double oval in an ER diagram. Example: A student can have more than one phone number, so phone number is a multivalued attribute.
Example-1: Suppose there is an attribute in “student ” table called “ Interests ” which can contain multiple values of the student’s interests. This attribute would display the various interests that students would have like “sports”, “music”, “programming etc. Due to the multiple-values functionality of this attribute, the database will be able to contain a number of information regarding the student’s preferences and activities.

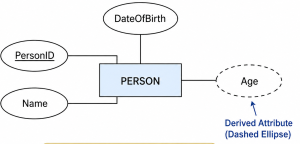

iv. Derived Attribute
An attribute that can be derived from another attribute is known as a derived attribute. It is represented by a dashed ellipse.
For example, a person’s age changes over time and can be derived from another attribute, such as the date of birth.
Features of Derived Attribute
- It is calculated from one or more other attributes.
- It is not usually stored in the database; it is computed when needed.
- It is represented by a dashed ellipse in an ER diagram.
- Its value can change automatically when the related attributes change.
- It helps reduce redundancy in data storage.
Advantages of Derived Attribute
- Saves storage space because it is not stored permanently.
- Ensures data consistency since values are calculated from original data.
- Reduces data redundancy.
- Automatically updates when base attributes change.
Disadvantages of Derived Attribute
- Requires extra computation time when the value is needed.
- Can slow down system performance if used frequently on large data.
- Cannot be accessed directly without calculation.
- May increase complexity in database design.

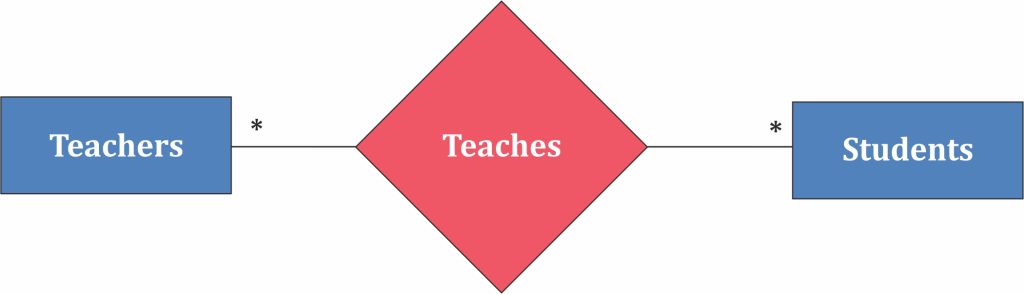

Relationship (Definition)
A relationship in DBMS is a link between two or more entities. It shows how data in one table is connected to data in another table. Relationships help in organizing and structuring the database properly. They are usually represented by a diamond shape in an ER diagram
Types Of Relationships In Database
1. One-to-One (1:1) Relationship
A one-to-one relationship means one entity is linked to only one other entity. Each record in one table corresponds to exactly one record in another table. Both entities have a direct and unique connection with each other. Example: One person has one passport.
2.One-to-Many (1:M) Relationship
A one-to-many relationship means one entity can be related to many other entities. However, each of those entities is connected to only one main entity. This is the most common type of relationship in database systems. Example: One teacher teaches many students.
3.Many-to-One (M:1) Relationship
A many-to-one relationship means many entities are associated with a single entity. Multiple records in one table are linked to one record in another table. It is the reverse form of a one-to-many relationship. Example: Many students belong to one class.
4. Many-to-Many (M:N) Relationship
A many-to-many relationship means many entities are related to many other entities. Records in one table can connect with multiple records in another table. This type of relationship is usually implemented using a junction table. Example: Students enroll in many courses.
Types of Mapping Cardinalities
One-to-One (1:1) Mapping
In one-to-one mapping, one entity is related to only one entity in another set. Each instance of both entities is uniquely connected. There is a direct and exclusive relationship between them. Example: One person has one passport.
One-to-Many (1:M) Mapping
In one-to-many mapping, one entity can be related to many entities in another set. However, each entity in the second set is linked to only one entity in the first set. This type is commonly used in databases. Example: One teacher teaches many students.
Many-to-One (M:1) Mapping
In many-to-one mapping, many entities are related to one entity. Multiple instances of one set are connected to a single instance of another set. It is the reverse of one-to-many mapping. Example: Many students belong to one class.
Many-to-Many (M:N) Mapping
In many-to-many mapping, many entities are related to many entities in another set. Each instance of one entity can be associated with multiple instances of another. This relationship is usually implemented using a junction table. Example: Students enroll in many courses.
Different Types of Database Keys
In a DBMS (Database Management System), the term “keys” refers to attributes (or sets of attributes) used to identify, access, and maintain relationships between records in a database table.
1. Primary Key
A primary key is a column or a group of columns used to uniquely identify each record in a table. Each table can have only one primary key. The values in a primary key must be unique and cannot be repeated. It also cannot contain null (empty) values.
2. Super Key
A super key is a set of one or more columns that can uniquely identify each row in a table. It may contain extra columns along with the required ones. Every primary key is a super key, but not every super key is a primary key. We choose the primary key from the set of superkeys.
3. Candidate Key
A candidate key is a column or a set of columns that can uniquely identify each row in a table. A table can have more than one candidate key. From these candidate keys, we select one to become the primary key. Candidate keys have the same properties as a primary key, such as uniqueness and no null values.
4. Alternate Key
An alternate key is any candidate key that is not selected as the primary key. Since a table can have multiple candidate keys but only one primary key, the remaining candidate keys are called alternate keys.
5. Foreign Key
A foreign key is a column or a set of columns used to create a relationship between two tables. It refers to the primary key of another table. The values in a foreign key must match the values in the referenced primary key. Foreign keys help maintain data consistency and referential integrity between tables.
6. Composite Key
A composite key is a combination of two or more columns used to uniquely identify each record in a table. Individually, these columns may not be unique, but together they ensure uniqueness of each row.
Importance of Database Keys
- Database keys help to uniquely identify each record in a table, so no two rows are the same.
- Keys ensure that the data in the database remains accurate and consistent by preventing duplicate and invalid entries.
- Foreign keys help to create relationships between different tables, making the database more organized and meaningful.
- Keys make it faster and easier to search, update, and delete records in a database.
- Keys reduce duplication of data by linking related tables instead of storing the same data repeatedly.
- Keys ensure that relationships between tables remain valid, meaning data in one table correctly matches data in another.
- Using keys properly helps in designing a well-structured and efficient database system.
