1. Introduction to Logic Gates and Truth Tables

Logic gates are the fundamental building blocks of digital electronics. These gates process binary inputs (0s and 1s) and produce a logical output based on predefined rules. They are widely used in computing, digital circuits, and automation systems.

What is a Truth Table?

A truth table represents the input-output relationship of a logic gate. It lists all possible combinations of inputs and their corresponding outputs, providing a clear understanding of how a gate functions.

For example, here’s a simple truth table for an OR gate:

Now, let’s explore different types of logic gates in detail.

2. Fundamental Logic Gates

2.1 Inverter (NOT Gate)

• The NOT gate, also known as an inverter, is the simplest logic gate. It has only one input and produces an output that is the logical complement of the input.
• The symbol of the NOT gate is shown in the below diagram.
• it includes one input  A , and produces out put Y= A’

• The boolean expression of NOT gate is given as Y= A̅

Truth Table for NOT Gate

Working Principle

• If the input is 0, the output is 1.
• If the input is 1, the output is 0.

2.2 OR Gate

• OR  gate is a basic electronic gate that gives an output of 1 (true) if at least one of its inputs is 1. If both inputs are 0, the output is 0 (false).
• The OR gate produces an output of 1 if at least one input is 1. It follows the Boolean equation:

$Y=A+B$

• The symbol of the OR gate is shown in the below diagram.

Truth Table for OR Gate

2.3 AND Gate

• The AND gate produces an output of 1 only if both inputs are 1. Its Boolean expression is:

                           Y=A⋅B

• The symbol of the AND gate and its truth table are explained below.

Truth Table for AND Gate

2.4 NOR Gate

• The NOR gate is the combination of an OR gate followed by a NOT gate.
• It produces an output of 1 only when all inputs are 0.
• The symbol of the NOR gate is shown below the diagram, it includes two inputs input A and input B, and produces out put Y= (A+B)’

Truth Table for NOR Gate

2.5 NAND Gate

• The NAND gate is an AND gate followed by a NOT gate. It produces an output of 0 only when both inputs are 1.
• The symbol of the  NAND gate is shown below the diagram.
• it includes two inputs input A, and input B, and produces output Y= (A.B)’
• The boolean expression of the NAND gate is given as

Y= (AB)’

Truth Table for NAND Gate

2.6 Universal Gates

• NAND and NOR gates are called universal gates because they can implement any Boolean function.
• These universal gates play a crucial role in circuit design and optimization.

Special Purpose Gate:

• Exclusive OR (Ex-OR)and Exclusive NOR (X-NOR) gates are called special-purpose gates due to their unique behavior and specific use cases in digital circuits. Unlike basic gates such as AND, OR, or NOT, which are used for general-purpose logic operations, the XOR gate has specialized applications that make it particularly useful in certain scenarios. Let’s break down why it’s called a special-purpose gate.

3.1 EX-OR Gate

• An Exclusive OR (XOR) gate, also known as an E-OR gate, is a digital logic gate that outputs true (or 1) only when the inputs to it are different.
• If both inputs are the same (either both 0 or both 1), the output is false (or 0).
• The symbol of the Ex-OR gate is shown in the below diagram.

3.2 EX-NOR Gate

• An Ex-NOR gate, also known as the Exclusive NOR gate or XNOR gate, is a type of digital logic gate that is the complement (inversion) of the Exclusive OR (XOR) gate.
• It produces a high output (1) only when the number of true inputs is even. In simpler terms, it outputs 1 if both inputs are the same, and 0 if the inputs are different.
• The symbol of EX-NOR gate is shown in the below diagram.
• The boolean expression of the E-NOR gate is given as

            Y = A ⊙ B = (A AND B) OR (NOT A AND NOT B)

4. Conclusion

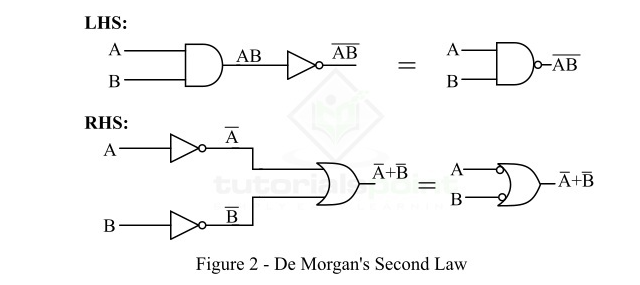

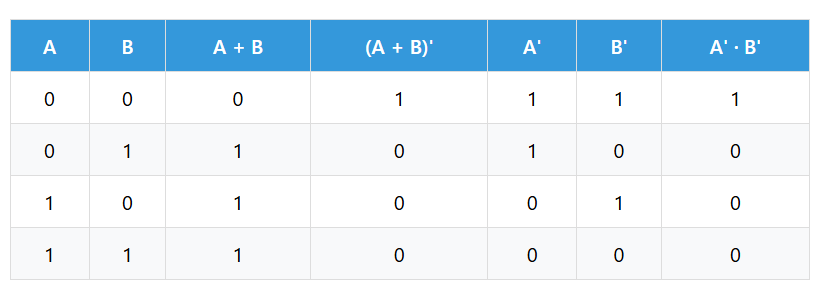

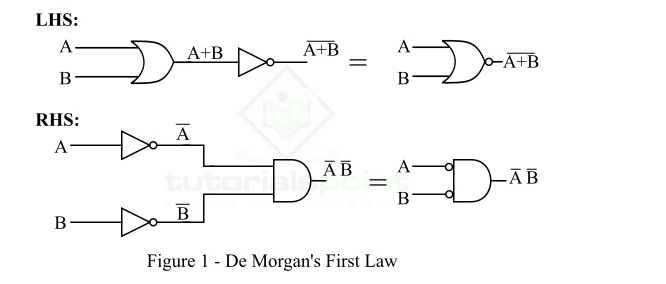

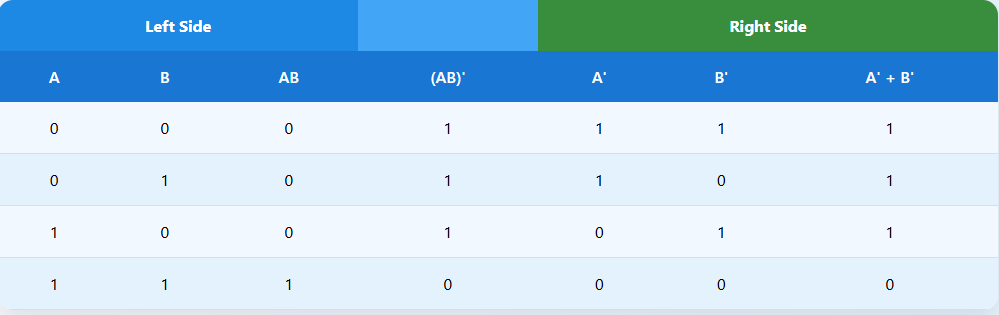

Logic gates form the backbone of digital electronics. Understanding truth tables, universal gates, and De Morgan’s theorem helps in designing efficient circuits. Whether you’re a student or a professional, mastering these concepts is crucial in the digital world.

compile by Er.Basant kumar yadav

5. FAQs

Q1: Why are NAND and NOR gates called universal gates?
A1: Because they can be used to construct any other logic gate.

Q2: What is the purpose of De Morgan’s theorem?
A2: It helps simplify Boolean expressions and logic circuits.

Q3: Where are logic gates used in real life?
A3: In computers, smartphones, calculators, and automation systems.

Q4: What is the main difference between AND and OR gates?
A4: AND requires all inputs to be 1 for 1 output, while OR requires only one.

Q5: Can NOT gate be created using NAND or NOR gates?
A5: Yes, by connecting both inputs together (NAND(A, A) or NOR(A, A)).
